Description

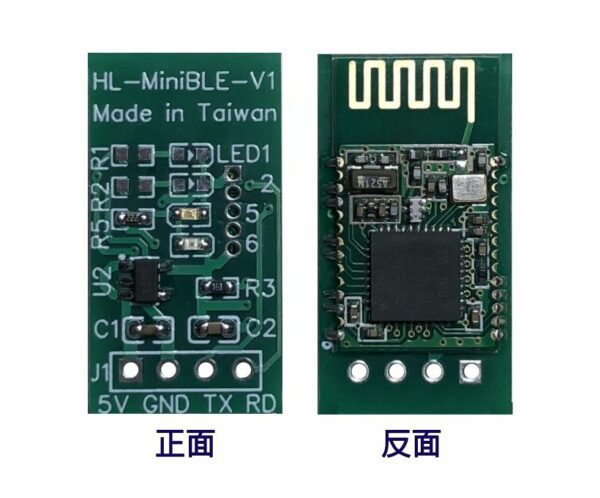

HL-MiniBLE-iBT Bluetooth Beacon Tag 藍牙定位模組, 可應用於: 室內定位/室內導航/廣告推播/電子標籤等…
功能簡介
- 採用Bluetooth BLE 低功耗晶片
- 支援標準iBeacon廣播協定
- 支援AT Command
- 可設定Beacon UUID, Company ID, Major ID, Minor ID, TX Power Level
- 可設定Broadcast interval
- 可設定RF TX Power
應用: 室內定位 商品導覽 廣告推播
產品規格
| Model Name | HL-MiniBLE-iBT |
| Bluetooth Chip | Bluetooth Smart (BLE 4.0) System-On-Chip (SOC). |
| Standard | Bluetooth specification vers 4.x |
| Frequency | 2.402GHz ~ 2.480GHz ISM band ， in 2 Mhz steps |
| Number of Channels | 40:37 data ， 0,12,39 advertising |
| Modulation Method | 1Mbps GFSK |
| Antenna | PCB Printed Antenna |
| Spread Spectrum | Frequency Hopping Spread Spectrum (FHSS) |
| Coverage | Up to 10~20 meter |
| Tx Power | -23 to 0 dBm（Class3） |
| Rx Sensitivity | -96/-90 dBm |
| Input Power | 5V DC |
| VDD ripple | 100 mV Max |
| Operating Temperature | 0 ~ +60℃ |
| Storage Temperature | -10 ~ +70℃ |
| Dimensions | 13.2 x 24.5 x 5(H)mm |
