Description

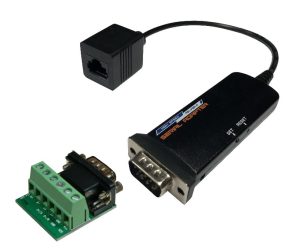

HL-SE03P-1P Mini Serial to Ethernet Converter
RS-232 RJ45 TCP/IP Ethernet 轉換模組
HL-SE03P是全雙工的串列通訊與Ethernet TCP/IP通訊的資料轉換器,透過HL-SE03您可以輕鬆的將串列設備連接至乙太網路. 經由RS-232將資料送上LAN，WAN 甚至Internet. 當然您也可以由遠端經LAN，WAN 及 Internet 將資料送入連接RS-232的設備.
當HL-SE03P由RS-232端接收到資料時, 會自動轉換為TCP/IP 封包由Ethernet 端轉送至其所指定之IP及Port. 並支援WinSock協定.
主要特色:
- 超迷你設計
●提供Windows工具, 方便管理及設定參數
●自動偵測 10 / 100 Mbps Ethernet 乙太網路埠

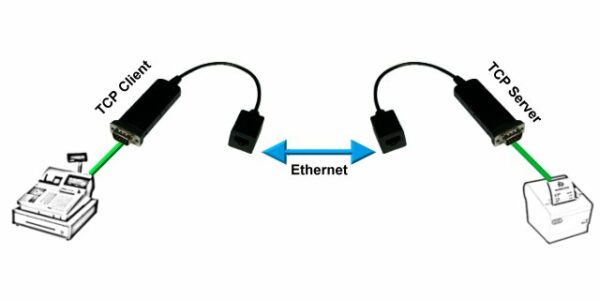

●支援TCP Server, TCP client 自動連線模式
●支援WinSock協定

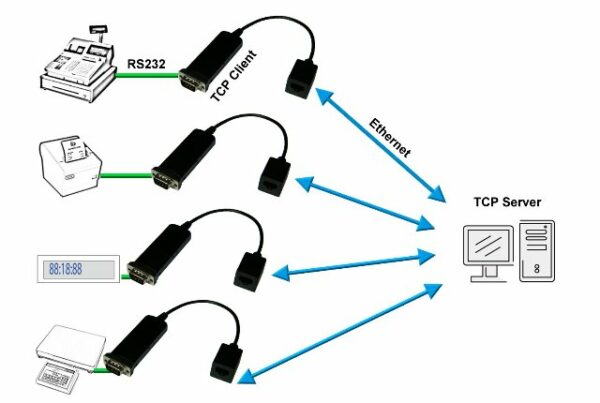

●主從架構 Client 端串列伺服器能自動連接到 server 端串列伺服器
●支援標準 WinSock (程式撰寫呼叫MSCOMM.OCX即可)
●最高支援 Baud Rate可達921600bps
產品規格:
| Model Name | HL-SE03P-1P |
| Network Interface | |
| Connector | RJ45 |
| Interface | Ethernet 10Base-T or 100Base-TX (Auto-Sensing) |
| Setup | Configuration Utility |
| Mode | TCP Server / TCP Client / UDP Server / UDP Client |
| Protocols | ARP,IP,ICMP,UDP,TCP,DHCP |
| Serial Interface | |
| Port 1 | RS-232 D-SUB 9-pin Connector |
| Baud Rate | 300/600/1200/2400/4800/9600/14400/19200/38400/
57600/115200/230400/460800/921600bps |
| Data Bit | 5 , 6 , 7 , 8 |
| Stop Bits | 1 or 2 |
| Parity | None , Odd , Even , Mark , Space |
| Flow Control | Does not support |
| Other | |
| Current Consumption | Max. 230 mA |
| Input Voltage | 5V DC |
| Operating Temperature | 0 ~ +60℃ |
| Storage Temperature | -10 ~ +70℃ |
| RoHS | Compliant with RoHS |
| Dimensions | 275*31*21.5(H)mm with RJ45 Cable |
