HL-MD08P-C2-HK User Manual 使用手冊Description
HL-MD08P-C2-HK RS232 轉 Bluetooth keyboard 模組

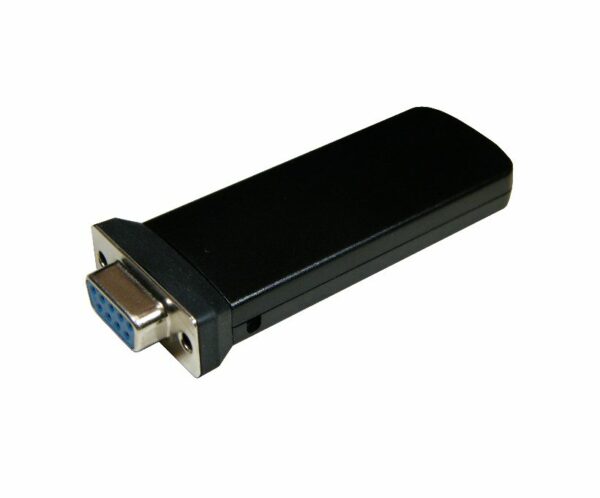

RS-232 轉藍牙鍵盤傳輸器 Bluetooth HID Client Module 藍牙鍵盤模組
HL-MD08P-C2-HK 模組能獨立運作Bluetooth HID Profile (Human Interface Device). 支援藍芽 HID HOST設備進行配對連線, 可搭配單晶片將資料由UART(RS-232介面)輸入. 即可轉為藍芽HID輸出. 適用藍芽實驗, 專題製作, 更多的創新應用… …
- 功能簡介
- CSR BC04 Bluetooth v2.1+EDR 晶片
- 內建標準藍芽Bluetooth Keyboard HID Profile
- Class2傳輸距離10公尺內(開放空間環境)
- 支援RS232介面轉換為Bluetooth HID
- 支援ASCII資料直接輸入
- 內建天線, 收訊穩定
- 產品應用
- 藍芽鍵盤
- 藍芽實驗, 專題製作… …
- 產品規格
| Description | RS232 Bluetooth Serial HID Dongle |
| Part Number | HL-MD08P-C2-HK |
| Bluetooth Profile | Human Interface Device Profile (Bluetooth HID) |
| Standard | Bluetooth specification version 2.1+EDR |
| Frequency | 2.402GHz ~ 2.480GHz unlicensed ISM band |
| Hopping | 1,600/sec, 1 MHz channel space |
| Modulation Method | GFSK for 1Mbps; Π/4-DQPSK for 2Mbps; 8-DPSK for 3Mbps |
| Transfer rates (Max) | Max UART baud rates of 3Mbps |
| Spread Spectrum | Frequency Hopping Spread Spectrum (FHSS) |
| Interface | USB 2.0 (Type A – Male) |
| Transfer Baud Rate | 9600 kbps |
| Flow Control | None |
| Data Bit | 8 |
| Stop Bit | 1 |
| Parity | None |
| RF Output Power | Class 2 |
| Tx Power | Max.4 +/-1 dBm |
| Rx Sensitivity | -80 dBm typical at BER < 0.1% |
| Antenna | PCB Antenna |
| Coverage | Up to 10 meters |
| Current Consumption | Max. 65 mA |
| Operating Temperature | 0 ~ +60℃ |
| Storage Temperature | -10 ~ +70℃ |
| Dimensions | 78 x 31 x 12.5mm (without antenna) |
- 出廠預設值
- 藍芽設備名稱 : Bluetooth Keyboard
- 配對驗證碼 PIN Code : 0000
- UART參數 : 9600, 8, n, 1
- LED 燈號說明
| LED Name | LED Color | Situation | Function |
| 狀態燈 | LED1 | 快閃 | 主動連線模式 |
| 慢閃 | 等待連線模式 | ||
| 連線燈 | LED2 | 恆亮 | 連線成功 |
- 按鍵功能
| Button Name | Function |
| RESET | 通電狀態按住RESET重置按鍵約3秒後放開,即還原至預設值. |
SET 設定按鍵無效 , HL-MD08P-HK不支援
- 出廠預設值
| 藍芽設備名稱 : | Bluetooth Keyboard |
| 配對驗證碼 PIN Code : | 0000 |
| 鮑率參數Baudrate : | 115200, 8, n, 1 |
